Projects

At Serinpe, every project is an opportunity to demonstrate our commitment to innovation, quality, and safety. Since 1991, we have supported strategic industries such as oil, electricity, pharmaceuticals, and construction, developing solutions that integrate cutting-edge technology with a highly specialized team.

SARAYACU STATION

IMO Pumps

Details

BAEZA STATION

IMO Pumps

Details

BAEZA STATION

WARREN PUMPS

Details

MDC STATION

IMO Pumps

Details

HOLCIM Floor

ALLWEILER Pumps

Details

ELECTROGUAYAS POWER PLANT

IMO Pumps

Details

MARINO BALAO ESMERALDAS

MIXERS IN STORAGE TANKS

Details

OUR CLIENTS

OCP
Logo-Celec
petro
enap
AGIP_ECUADOR
Bopp
explocem
andespet
linde
sigmaplast
UNACEM
Wartsila

FIND US

Contact us

Send us a message to our email address

info@serinpe.com

Phone: +593 98 145 5374

Facebook-f Instagram Linkedin
Scroll to Top

SARAYACU STATION

  • Project location: Station Sarayacu.
  • Units involved: 4 units, IMO brand, model 8L-630
  • Capacity of the units:
    • Each unit has a power rating of 1,000 horsepower.
    • Each unit can pump 25,000 barrels of oil per day.
  • Total system capacity:
    • 4 units × 25,000 barrels = 100,000 barrels of oil per day.

BAEZA STATION

It consists of (1) a model oil injection unit 8L-630, coupled to an electric motor of 150 HPThis system is integrated with a brand-name injection pump. Warren, model 2300 high pressure coupled to a 400 HP internal combustion engine, capable of injecting oil into the flow line of the Trans-Ecuadorian Pipeline System (S.O.T.E).

ENAP SIPETROL MDC STATION

The station consists of four IMO brand pumping units, model A6DHT-230, each coupled to a 150HP electric motor. The station has a total pumping capacity of 20,000 barrels of oil per day.

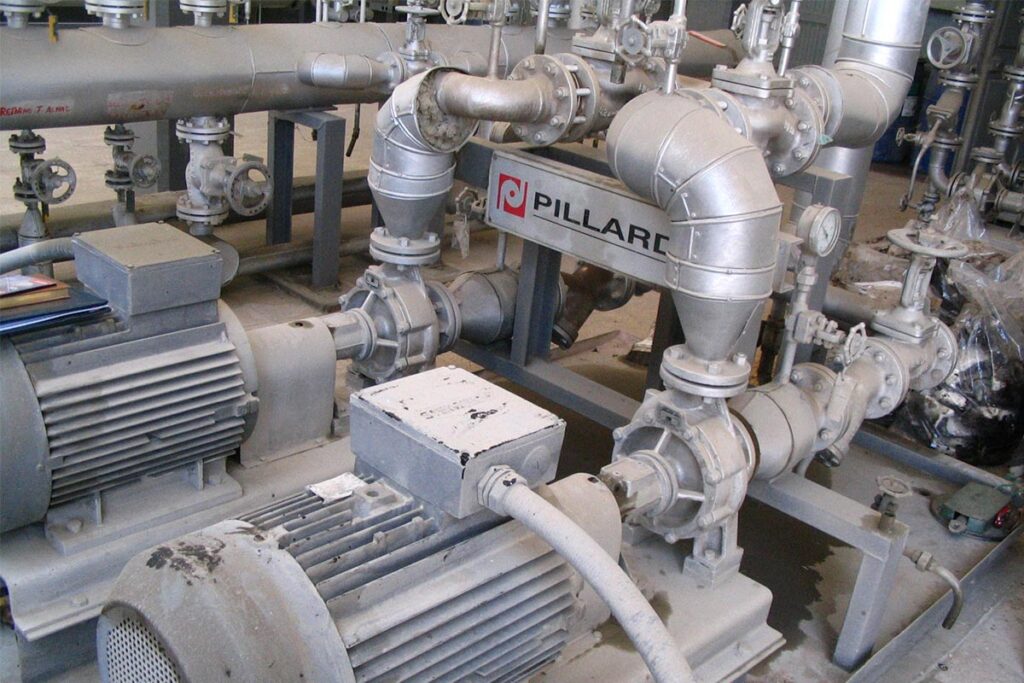

ALLWEILER PUMPING SYSTEM

The project consists of 14 ALLWEILER centrifugal pumps, models NBT-200 and NAM-F-200, designed to handle fluids within the plant's thermal processing system.

Technical Characteristics of the Pumps:.

Type: Side channel and standard centrifugal pumps.

Common models: NT, NB, NI, MA-B, NAM-F, NSG, among others.

Application: Handling of low-viscosity fluids, including hot water and other thermal liquids.

Design: Dynamically balanced impeller to reduce vibrations.

Delivery height: Up to 20 meters.

Advantages: High hydraulic efficiency, low maintenance, and adaptability to demanding industrial conditions

ELECTRICITY GENERATION IN ELECTROGUAYAS

Technical Summary of the Power Plant Project

Project Name: Power Plant with Diesel Fuel Pumping System

Objective:
System for transferring diesel fuel from storage tanks to power generation turbines, using a high-performance, high-pressure pumping system.

Componentes Principales:

  1. IMO Model 12DHT-400 Pumping System:
  • Type: Vertical 3-screw high-pressure, high-performance pump.
  • Application: Continuous and safe transfer of diesel fuel.
  1. Diesel Fuel Storage Tanks:
  • 10,000-gallon capacity: Designed to supply the energy demand of the turbines.
  • Safety: Equipped with leak monitoring and control systems.

Key Technical Features:

  • High energy efficiency.
  • Constant and controlled pressure in the pumping system.
  • Automation of the fuel transfer process.
  • Compliance with IMO industrial safety standards.

Applications:
This system is designed for power plants that require a reliable source of liquid fuel, especially in areas where the electricity supply depends on thermal generation.



BALAO ESMERALDAS MARINE TERMINAL

Technical Summary of the Crude Oil Blending Project – OCP Ecuador

Project Objective:
Implement an efficient mixing system for heavy crude oil stored in tanks, in order to optimize its transfer and commercialization, ensuring product homogeneity and quality.

Main Infrastructure:

Marine Terminal (End of OCP):

  • Number of tanks: 5
  • Capacity per tank: 750,000 barrels
  • Equipment per tank:
    • 5 Plenty mixers, model 31P-SSM-45KW
    • Power of each motor: 45 kW
    • Total number of mixers in this terminal: 25 units
    • Power transmission via reduction gearbox
    • Mixer shaft: 85 mm
    • Automatic mixing system with actuator
    • Highly configurable sealing system

Amazonas Terminal (Start of the OCP)

  • Number of tanks: 4
  • Capacity per tank: 350,000 barrels
  • Equipment per tank:
    • 3 Plenty mixers, model 31P-SSM-45KW
    • Power of each motor: 45 kW
    • Total number of mixers in this terminal: 12 units

Total number of mixers in this terminal: 12 units

  • Total tanks: 9
  • Total volume in tanks: 5,150,000 barrels
  • Total number of Plenty 31P-SSM-45KW mixers: 37 units
  • Total installed power in mixers: 1,665 kW

Key Technical Features:

  • Automatic mixing system
  • High energy efficiency
  • Modular configuration for maintenance and operation
  • Highly reliable sealing for continuous operation
